Automatic ice cube making machine 908 kg 1088 kg

Short Description:

Cube ice machines are designed to produce uniform, clear, and hard ice cubes for various commercial uses. These machines are commonly used in restaurants, bars, hotels, and other food service establishments. Cube ice machines come in different capacities and sizes to meet the needs of different businesses.

Here are some popular types of cube ice machines:

  1. Modular Cube Ice Machines: These are large-capacity ice machines that are designed to be installed on or above other equipment such as ice bins or beverage dispensers. They are ideal for businesses that require a high volume of ice production.
  2. Undercounter Cube Ice Machines: These compact machines are designed to fit conveniently beneath counters or in tight spaces. They are suitable for small bars, cafes, and restaurants with limited space.
  3. Countertop Cube Ice Machines: These small, self-contained units are designed to sit on countertops, making them ideal for businesses with limited floor space or for use at events and small gatherings.
  4. Dispenser Cube Ice Machines: These machines not only produce ice cubes but also dispense them directly into drinkware, making them convenient for self-serve applications in convenience stores, cafeterias, and more.
  5. Air-Cooled and Water-Cooled Cube Ice Machines: Cube ice machines come in both air-cooled and water-cooled models. Air-cooled machines are typically more energy-efficient, while water-cooled machines are better suited for environments with high ambient temperatures or limited air circulation.

When choosing a cube ice machine, it’s important to consider factors such as ice production capacity, storage capacity, energy efficiency, space requirements, ease of maintenance, and the specific needs of the business or establishment.


Product Detail

Product Tags

Product Introduction

Cube ice machine from Shanghai Jingyao Industrial Co.,Ltd. is perfect for mixed drinks, carbonated beverages, ice displays and ice retailing in all types of operations. It is commonly found in restaurants, bars, convenience stores, and catering businesses.

Model No. Daily capacity (kgs/24hours) Ice storage bin capacity (kgs) Input power (Watt) Standard power supply Overall size (LxWxH mm) Available cube ice size (LxWxH mm)
Integrated Type (Built-in ice storage bin, standard cooling type is air cooling, water cooling is optional)
JYC-90P 40 15 380 220V-1P-50Hz 430x520x800 22x22x22
JYC-120P 54 25 400 220V-1P-50Hz 530x600x820 22x22x22
JYC-140P 63 25 420 220V-1P-50Hz 530x600x820 22x22x22
JYC-180P 82 45 600 220V-1P-50Hz 680x690x1050 22x22x22/22x11x22
JYC-220P 100 45 600 220V-1P-50Hz 680x690x1050 22x22x22/22x11x22
JYC-280P 127 45 650 220V-1P-50Hz 680x690x1050 22x22x22/22x11x22
Combined Type (Ice maker part and ice storage bin part were separated, standard cooling type is water cooling, air cooling is optional)
JYC-350P 159 150 800 220V-1P-50Hz 560x830x1550 22x22x22/22x11x22
JYC-400P 181 150 850 220V-1P-50Hz 560x830x1550 22x22x22/22x11x22
JYC-500P 227 250 1180 220V-1P-50Hz 760x830x1670 22x22x22/22x11x22
JYC-700P 318 250 1350 220V-1P-50Hz 760x830x1740 22x22x22/29x29x22/22x11x22
JYC-1000P 454 250 1860 220V-1P-50Hz 760x830x1800 22x22x22/29x29x22/40x40x22
JYC-1200P 544 250 2000 220V-1P-50Hz 760x830x1900 22x22x22
JYC-1400P 636 450 2800 380V-3P-50Hz 1230x930x1910 22x22x22/29x29x22/22x11x22
JYC-2000P 908 450 3680 380V-3P-50Hz 1230x930x1940 22x22x22/29x29x22/40x40x22
JYC-2400P 1088 450 4500 380V-3P-50Hz 1230x930x2040 22x22x22

PS. The voltage of ice machine could be customized, such as 110V-1P-60Hz.
Please feel free to contact us if you need larger capacity of ice machine, such as 2/5/10 tons ice machine etc.

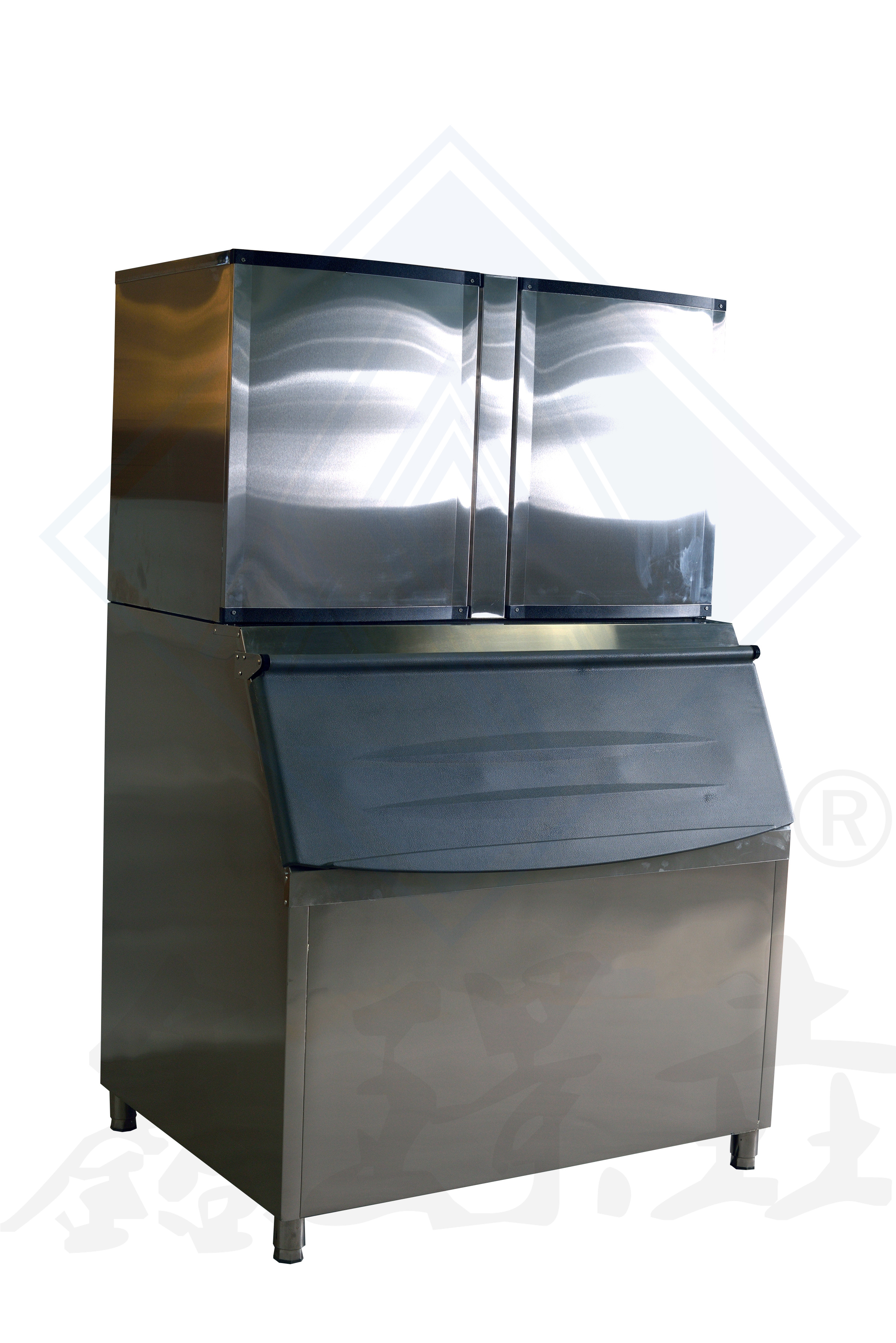

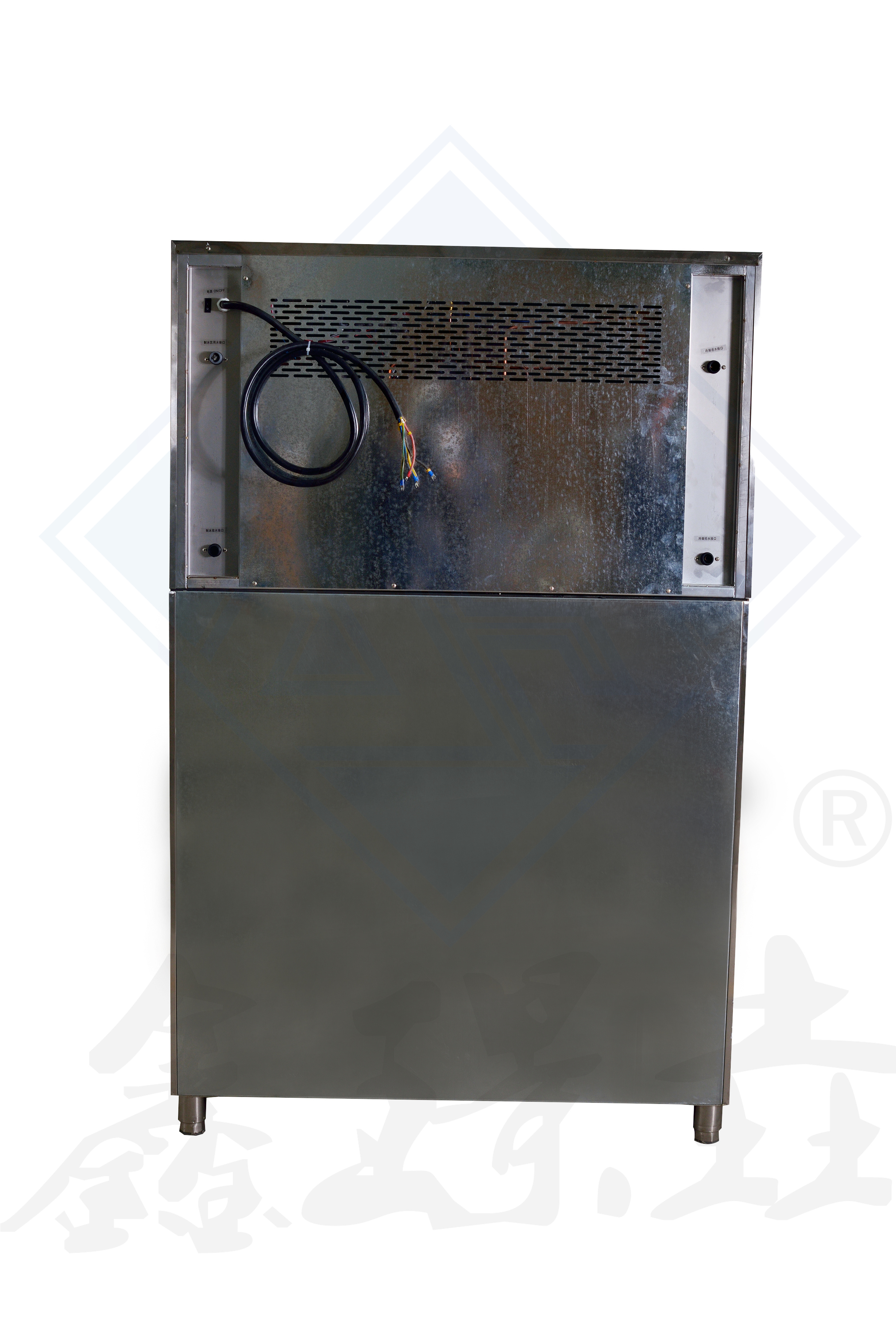

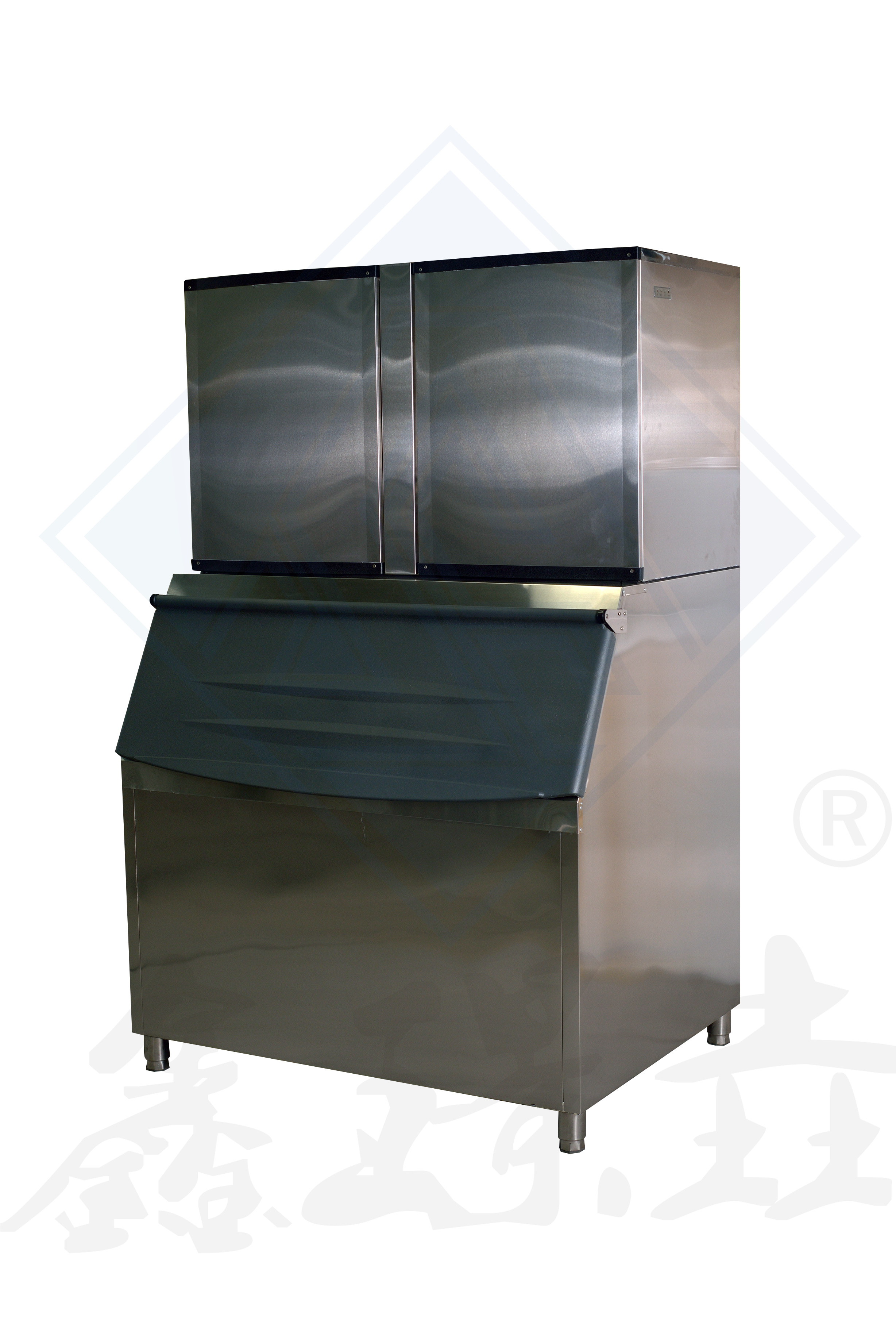

Product Display

 023 021 022

Feature

1. Large size cube ice

2. Slow melting rate cube ice

3. Providing maximum cooling

4. Reducing ice consumption

5. Saving costs

6. Suit for ice bagging and dispensing

7. Widely use

8. Imported parts

Working Principle

Cube ice machines freeze water in batches. Those with vertical evaporators have a water dispensing tube at the top that creates a waterfall effect. As the water flows into and out of each cell in the evaporator more is frozen until the cells fill with completely frozen ice.Once the ice is ready to drop, the ice machine goes into a harvest cycle. The harvest cycle is a hot gas defrost, which sends hot gas from the compressor to the evaporator. A hot gas cycle defrosts the evaporator just enough to release the cubes into the ice storage bin (or ice dispenser) below
