CE certified ice cube making machine 159kg 181kg 227kg 318kg
Product Introduction
Cube ice machine from Shanghai Jingyao Industrial Co.,Ltd. is perfect for mixed drinks, carbonated beverages, ice displays and ice retailing in all types of operations. It is commonly found in restaurants, bars, convenience stores, and catering businesses.
| Model No. | Daily capacity (kgs/24hours) | Ice storage bin capacity (kgs) | Input power (Watt) | Standard power supply | Overall size (LxWxH mm) | Available cube ice size (LxWxH mm) |
| Integrated Type (Built-in ice storage bin, standard cooling type is air cooling, water cooling is optional) | ||||||
| JYC-90P | 40 | 15 | 380 | 220V-1P-50Hz | 430x520x800 | 22x22x22 |
| JYC-120P | 54 | 25 | 400 | 220V-1P-50Hz | 530x600x820 | 22x22x22 |
| JYC-140P | 63 | 25 | 420 | 220V-1P-50Hz | 530x600x820 | 22x22x22 |
| JYC-180P | 82 | 45 | 600 | 220V-1P-50Hz | 680x690x1050 | 22x22x22/22x11x22 |
| JYC-220P | 100 | 45 | 600 | 220V-1P-50Hz | 680x690x1050 | 22x22x22/22x11x22 |
| JYC-280P | 127 | 45 | 650 | 220V-1P-50Hz | 680x690x1050 | 22x22x22/22x11x22 |
| Combined Type (Ice maker part and ice storage bin part were separated, standard cooling type is water cooling, air cooling is optional) | ||||||
| JYC-350P | 159 | 150 | 800 | 220V-1P-50Hz | 560x830x1550 | 22x22x22/22x11x22 |
| JYC-400P | 181 | 150 | 850 | 220V-1P-50Hz | 560x830x1550 | 22x22x22/22x11x22 |
| JYC-500P | 227 | 250 | 1180 | 220V-1P-50Hz | 760x830x1670 | 22x22x22/22x11x22 |
| JYC-700P | 318 | 250 | 1350 | 220V-1P-50Hz | 760x830x1740 | 22x22x22/29x29x22/22x11x22 |
| JYC-1000P | 454 | 250 | 1860 | 220V-1P-50Hz | 760x830x1800 | 22x22x22/29x29x22/40x40x22 |
| JYC-1200P | 544 | 250 | 2000 | 220V-1P-50Hz | 760x830x1900 | 22x22x22 |
| JYC-1400P | 636 | 450 | 2800 | 380V-3P-50Hz | 1230x930x1910 | 22x22x22/29x29x22/22x11x22 |
| JYC-2000P | 908 | 450 | 3680 | 380V-3P-50Hz | 1230x930x1940 | 22x22x22/29x29x22/40x40x22 |
| JYC-2400P | 1088 | 450 | 4500 | 380V-3P-50Hz | 1230x930x2040 | 22x22x22 |
PS. The voltage of ice machine could be customized, such as 110V-1P-60Hz.
Please feel free to contact us if you need larger capacity of ice machine, such as 2/5/10 tons ice machine etc.

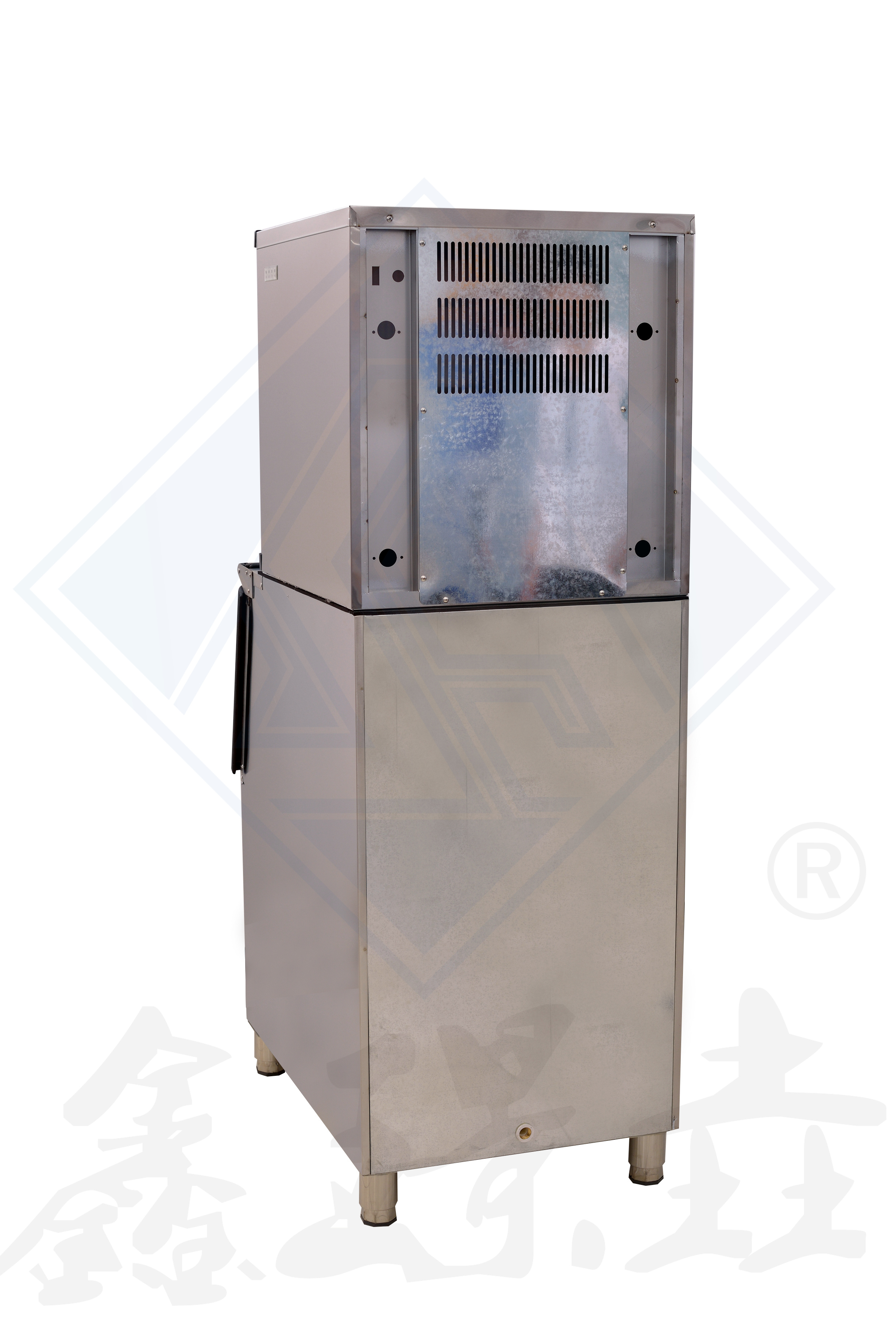

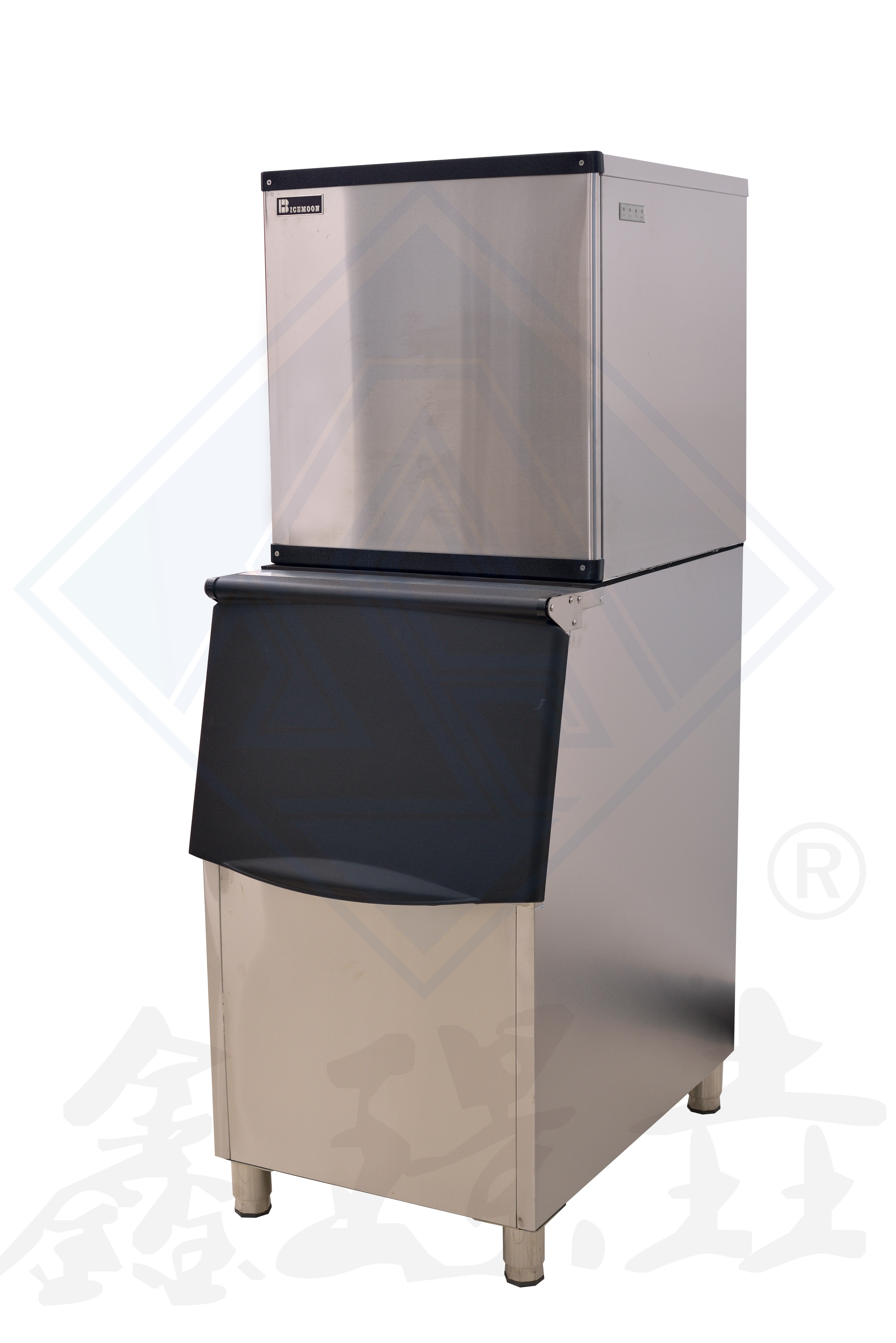

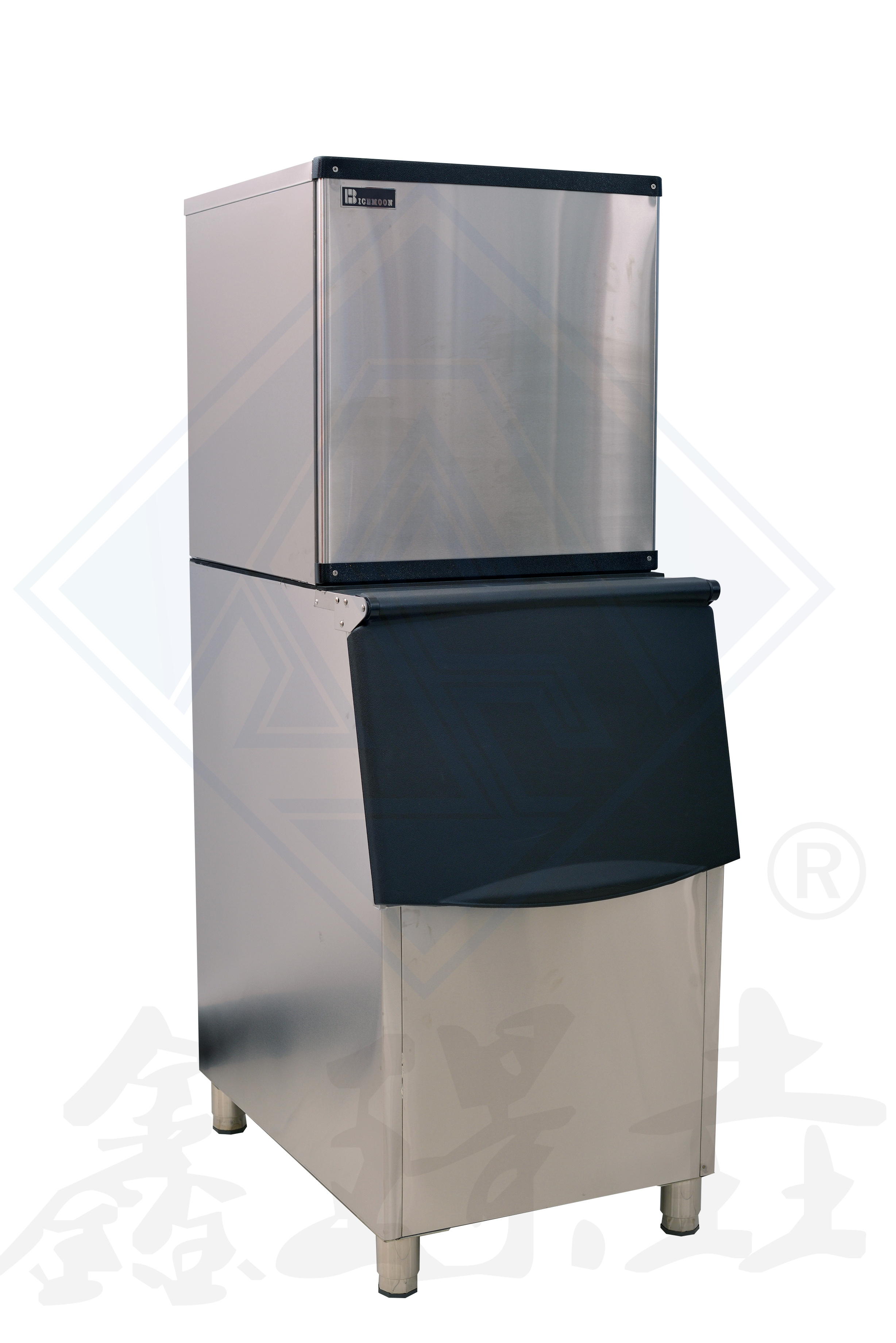

Product Display
Feature
1. Large size cube ice
2. Slow melting rate cube ice
3. Providing maximum cooling
4. Reducing ice consumption
5. Saving costs
6. Suit for ice bagging and dispensing
7. Widely use
8. Imported parts
Working Principle
Cube ice machines freeze water in batches. Those with vertical evaporators have a water dispensing tube at the top that creates a waterfall effect. As the water flows into and out of each cell in the evaporator more is frozen until the cells fill with completely frozen ice.Once the ice is ready to drop, the ice machine goes into a harvest cycle. The harvest cycle is a hot gas defrost, which sends hot gas from the compressor to the evaporator. A hot gas cycle defrosts the evaporator just enough to release the cubes into the ice storage bin (or ice dispenser) below
