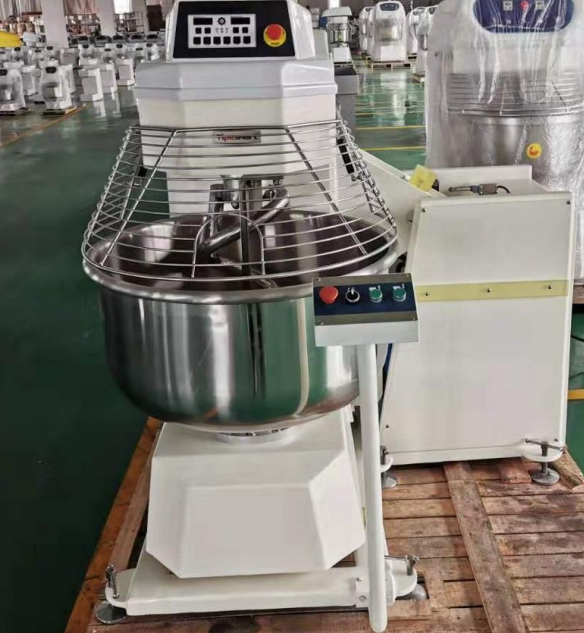

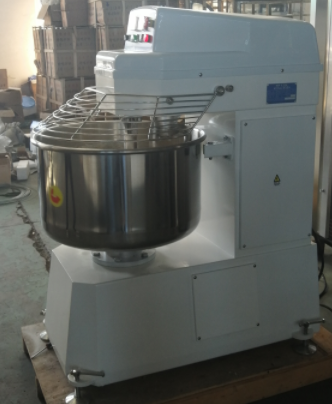

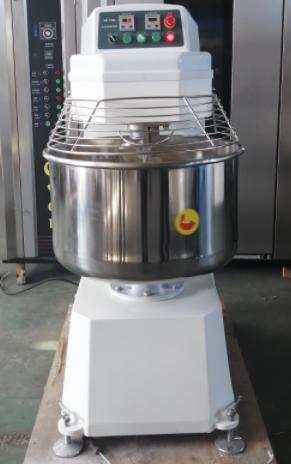

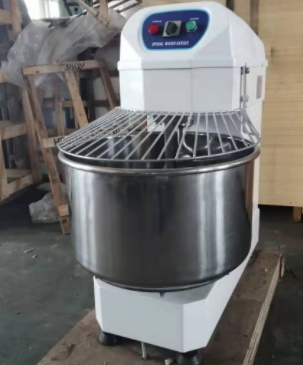

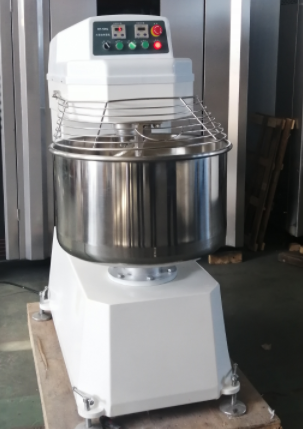

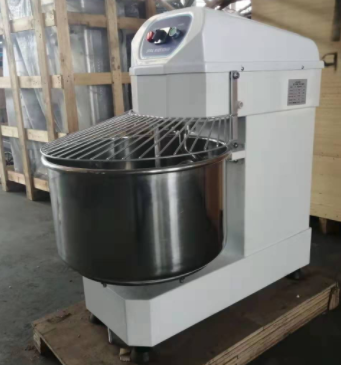

Factory bakery bread dough sprial mixer (large capacity) mixer

Short Description:

Dough mixers are used in bakeries to stir dough ingredients together. Mixing arms stir ingredients in a bowl or trough to produce dough of even consistency.

Power supply: 380V/ 220V

Bowl capacity: 20L-300L

Material: Food grade stainless steel

Send email to us

Product Detail

Product Tags

1. High & low speed

2. Automatic timer

3. Equipped with bowl safety transparent guard

4. Ideal for all kind of dough

5. Easy to operate and clean
6. Requires practically no maintenance

7. Motor overload protection

8. Independent motors for bowl and spiral

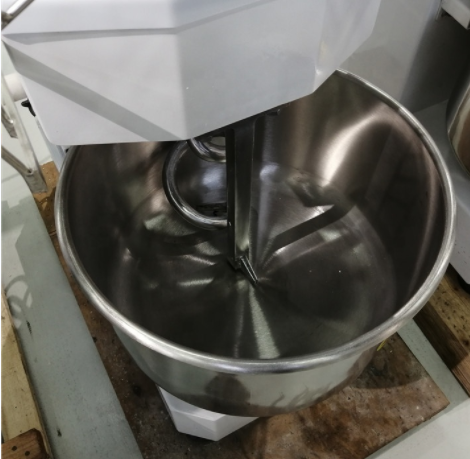

9. Stainless steel 304 arm, bowl and dividing plate

10. Ideal mixing process for programmable time sequence, manual intervention possible at any time

11.High torque, dual stage belt drive,Front and rear levelers Automatic over-current protection

Features:

And food contact metal, are made of high-grade stainless steel materials, three speed change gear, hard gear drive,

durable, high efficiency, low failure rate. The motor overload protection switch , safe and rel able, high-end motor,

stable performance, low noise, simplify operation, mixing cakes delicate, soft, high taste, suitable for mixing cake,

cream, stuffing and so on .

Model	Bowl capacity	Rated Voltage	Rated Power(KW)	Dimension(mm)
JY-SM20	20L	220V/380V	0.65/0.85KW	710x380x740
JY-SM30	30L	220V/380V	0.85/1.1KW	800x445x790
JY-SM40	40L	220V/380V	1.2/2.2KW	900x500x960
JY-SM50	50L	220V/380V	1.2/2.2KW	950x530x970
JY-SM60	60L	220V/380V	1.5/2.4KW	980x560x1060
JY-SM80	80L	380V	2.2/3.3KW	1110x600x1080
JY-SM120	120L	380V	3/4.5kW	1200x690x1330
JY-SM200	200L	380V	4/9kW	1400x970x1580
JY-SM240	248L	380V	5/ 7.5kW	1450x820x1600
