Factory bread dough sprial mixer (large capacity) mixer

Short Description:

Dough mixers are used in bakeries to stir dough ingredients together. Mixing arms stir ingredients in a bowl or trough to produce dough of even consistency.


  • Power supply: 380V/ 220V
  • Bowl capacity: 20L-300L
  • Material: Food grade stainless steel
  • Product Detail

    Product Tags

    1. High & low speed

    2. Automatic timer

    3. Equipped with bowl safety transparent guard

    4. Ideal for all kind of dough

    5. Easy to operate and clean
    6. Requires practically no maintenance

    7. Motor overload protection

    8. Independent motors for bowl and spiral

    9. Stainless steel 304 arm, bowl and dividing plate

    10. Ideal mixing process for programmable time sequence, manual intervention possible at any time

    11.High torque, dual stage belt drive,Front and rear levelers Automatic over-current protection

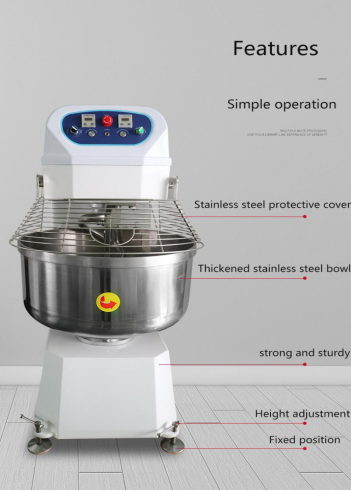

    Features:

    And food contact metal, are made of high-grade stainless steel  materials, three speed  change gear, hard gear drive,



    durable, high efficiency, low failure rate. The motor overload  protection switch , safe and rel able, high-end motor,



    stable performance, low noise, simplify  operation, mixing cakes delicate, soft, high taste, suitable for mixing cake,



    cream, stuffing  and so on .



    Model

    Bowl capacity

    Rated Voltage

    Rated Power(KW)

    Dimension(mm)

    JY-SM20

    20L

    220V/380V

    0.65/0.85KW

    710x380x740

    JY-SM30

    30L

    220V/380V

    0.85/1.1KW

    800x445x790

    JY-SM40

    40L

    220V/380V

    1.2/2.2KW

    900x500x960

    JY-SM50

    50L

    220V/380V

    1.2/2.2KW

    950x530x970

    JY-SM60

    60L

    220V/380V

    1.5/2.4KW

    980x560x1060

    JY-SM80

    80L

    380V

    2.2/3.3KW

    1110x600x1080

    JY-SM120

    120L

    380V

    3/4.5kW

    1200x690x1330

    JY-SM200

    200L

    380V

    4/9kW

    1400x970x1580

    JY-SM240

    248L

    380V

    5/ 7.5kW

    1450x820x1600

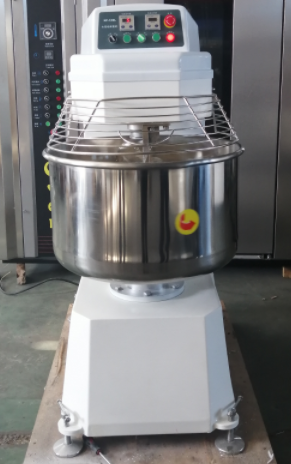

    60L dough/sprial mixer:

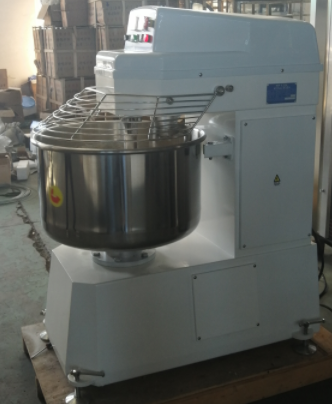

    120L dough/sprial mixer:

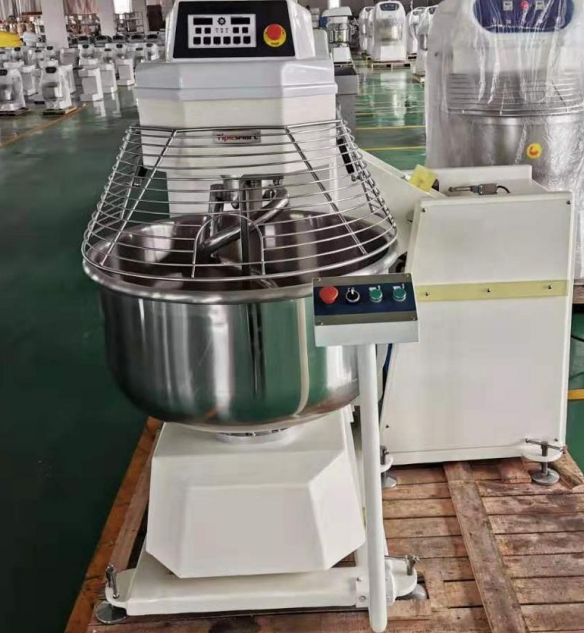

    Dough/sprial mixer (with lifter, automatic discharge)-120L,200L,260L,300L

    1.Product Characteristics of Industrial spiral dough mixers for sale

    1)Two-speed double-acting.This mixer Blender and working bucket stirrer can be run at the same time.

    2)Adopt spiral mixer to make the dough tencity higher and expansion force better.

    3)Double speed gear,positive barrel,easy operation.

    4)Be extensively suitable for bakeries,canteens,restaurants,food factoriesand making various kings of dough with.

    5)Freely control the mixing time.

    6)Easy maintainance and production cost-saving.

    7)Be customized for you according to your needs.

    8)Different types with production capacity ranging from 8kg to 125kg.
