Ice cube make machine commercial 82kg 100kg 127kg

Short Description:

Key features of cube ice machines may include:

Fast production: Cube ice machines can produce a large quantity of ice cubes in a short period of time, ensuring a constant supply of ice for beverages and other uses.
Energy efficiency: Many cube ice machines are designed to be energy-efficient, helping businesses save on operating costs.
Easy maintenance: Some models are designed for easy cleaning and maintenance to ensure optimal performance and hygiene.
Different cube sizes: Cube ice machines may offer options for producing different sizes of ice cubes to suit various requirements.
Durability: High-quality cube ice machines are built to be durable and reliable, with features to minimize the risk of breakdowns and maintenance issues.

Send email to us

Product Detail

Product Tags

Product Introduction

Cube ice machine from Shanghai Jingyao Industrial Co.,Ltd. is perfect for mixed drinks, carbonated beverages, ice displays and ice retailing in all types of operations. It is commonly found in restaurants, bars, convenience stores, and catering businesses.

Model No.	Daily capacity (kgs/24hours)	Ice storage bin capacity (kgs)	Input power (Watt)	Standard power supply	Overall size (LxWxH mm)	Available cube ice size (LxWxH mm)
Integrated Type (Built-in ice storage bin, standard cooling type is air cooling, water cooling is optional)
JYC-90P	40	15	380	220V-1P-50Hz	430x520x800	22x22x22
JYC-120P	54	25	400	220V-1P-50Hz	530x600x820	22x22x22
JYC-140P	63	25	420	220V-1P-50Hz	530x600x820	22x22x22
JYC-180P	82	45	600	220V-1P-50Hz	680x690x1050	22x22x22/22x11x22
JYC-220P	100	45	600	220V-1P-50Hz	680x690x1050	22x22x22/22x11x22
JYC-280P	127	45	650	220V-1P-50Hz	680x690x1050	22x22x22/22x11x22
Combined Type (Ice maker part and ice storage bin part were separated, standard cooling type is water cooling, air cooling is optional)
JYC-350P	159	150	800	220V-1P-50Hz	560x830x1550	22x22x22/22x11x22
JYC-400P	181	150	850	220V-1P-50Hz	560x830x1550	22x22x22/22x11x22
JYC-500P	227	250	1180	220V-1P-50Hz	760x830x1670	22x22x22/22x11x22
JYC-700P	318	250	1350	220V-1P-50Hz	760x830x1740	22x22x22/29x29x22/22x11x22
JYC-1000P	454	250	1860	220V-1P-50Hz	760x830x1800	22x22x22/29x29x22/40x40x22
JYC-1200P	544	250	2000	220V-1P-50Hz	760x830x1900	22x22x22
JYC-1400P	636	450	2800	380V-3P-50Hz	1230x930x1910	22x22x22/29x29x22/22x11x22
JYC-2000P	908	450	3680	380V-3P-50Hz	1230x930x1940	22x22x22/29x29x22/40x40x22
JYC-2400P	1088	450	4500	380V-3P-50Hz	1230x930x2040	22x22x22

PS. The voltage of ice machine could be customized, such as 110V-1P-60Hz.
Please feel free to contact us if you need larger capacity of ice machine, such as 2/5/10 tons ice machine etc.

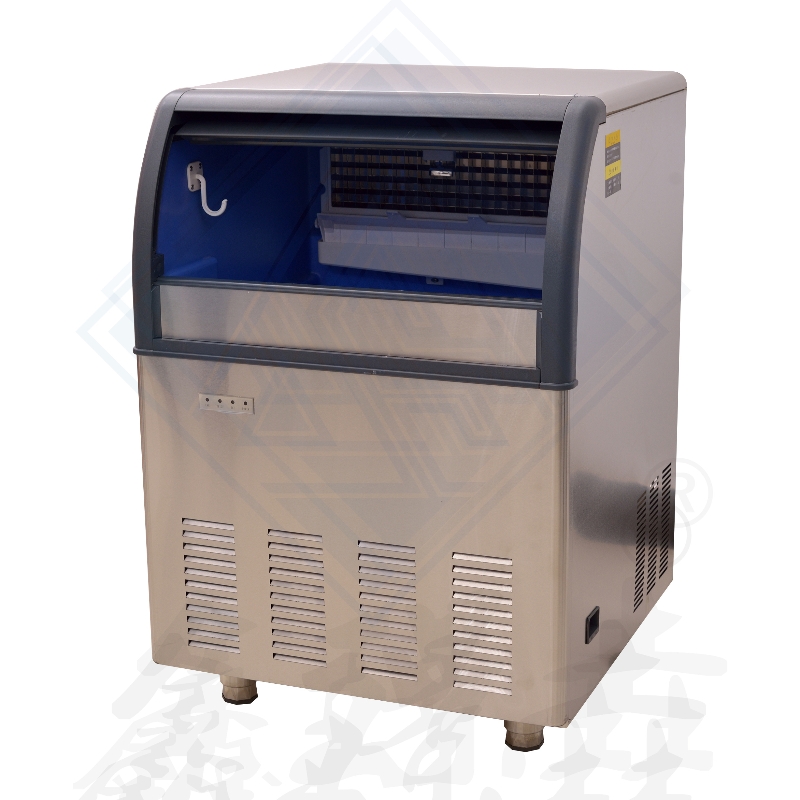

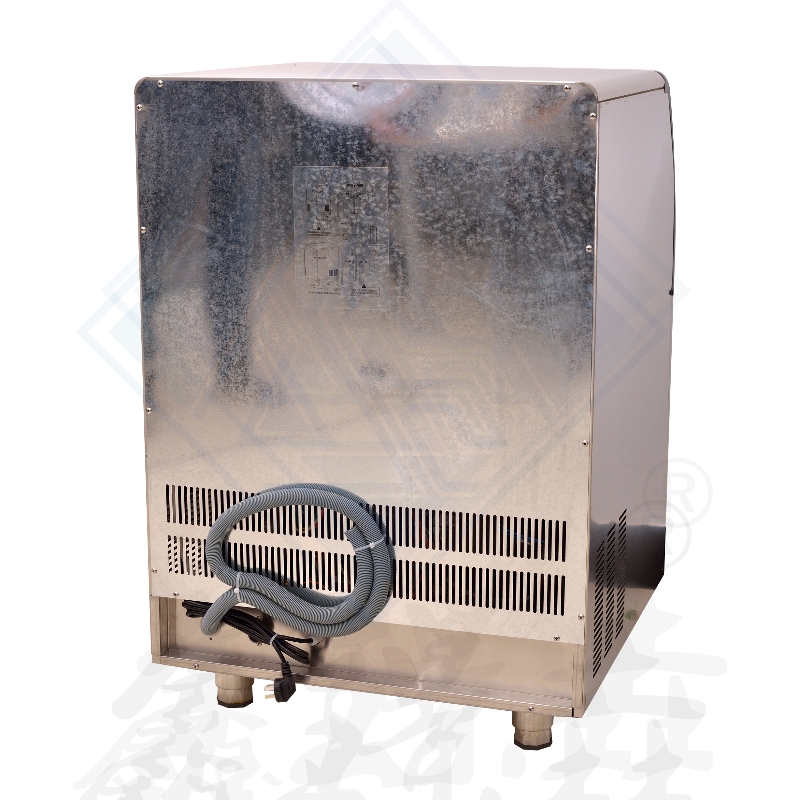

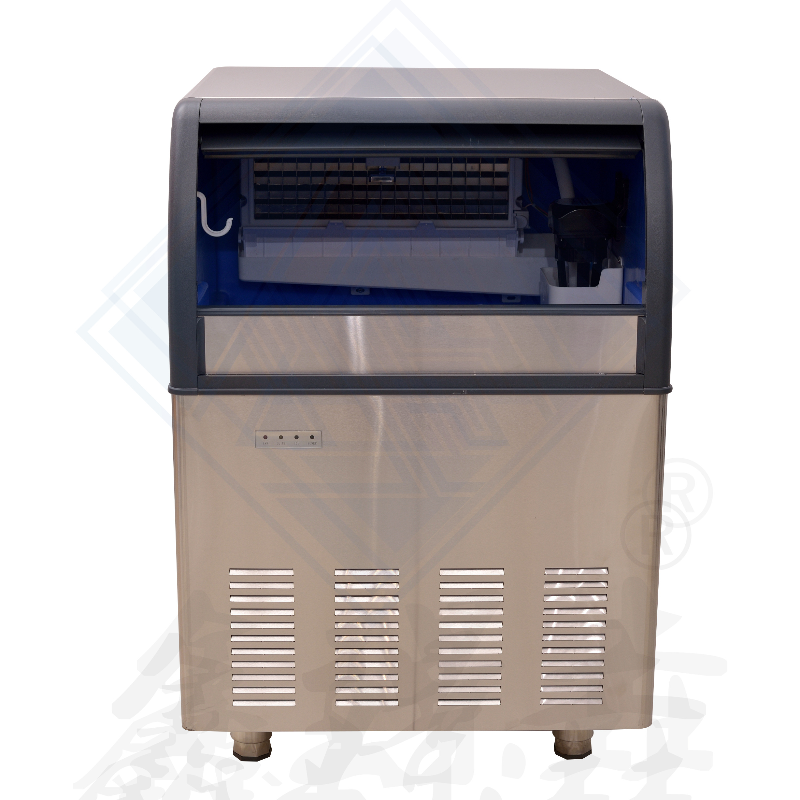

Product Display

Feature

1. Large size cube ice

2. Slow melting rate cube ice

3. Providing maximum cooling

4. Reducing ice consumption

5. Saving costs

6. Suit for ice bagging and dispensing

7. Widely use

8. Imported parts

Working Principle

Cube ice machines freeze water in batches. Those with vertical evaporators have a water dispensing tube at the top that creates a waterfall effect. As the water flows into and out of each cell in the evaporator more is frozen until the cells fill with completely frozen ice.Once the ice is ready to drop, the ice machine goes into a harvest cycle. The harvest cycle is a hot gas defrost, which sends hot gas from the compressor to the evaporator. A hot gas cycle defrosts the evaporator just enough to release the cubes into the ice storage bin (or ice dispenser) below
